Digital pressure gauge

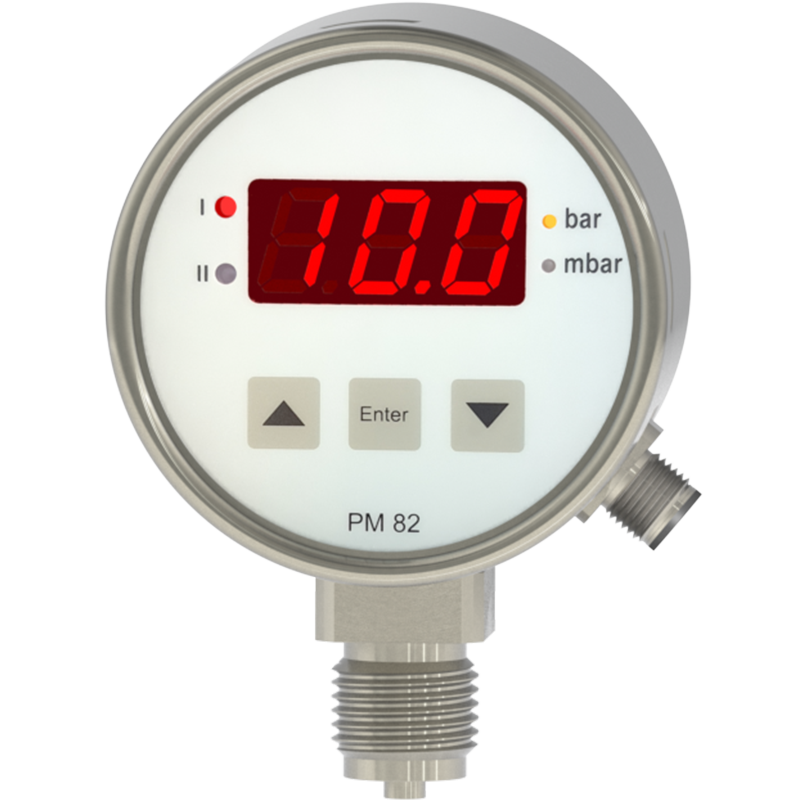

Digital Pressure Gauge PM82


  • 3 digit LED display
  • Recording min./max. pressure
  • Dry piezoresistive ceramic sensor
  • Smallest measuring range: 0…500 mbar
  • Largest measuring range: 0…250 bar
  • Negative pressure measuring range: up to -1 bar
  • Accuracy ≤ 0,5%
  • 2 contact outputs DC PNP, max. 200mA
  • Analog output: 4…20 mA, 2-wires
                              0…10 V, 3-wires
                              0...20 mA, 3-wires


The PM82 digital pressure gauge features a large, bright display.  The digital contact gauge can still be easily read from a distance and therefore allows for a quick assessment of the process pressure. An analog output and 2 switch outputs widen the range of  applications. The piezoresistive measuring principle in combination with a ceramic membrane is resistant to aggressive and  abrasive  media. The  process  connection is made of high-quality stainless steel 1.4404 and is therefore suitable for almost all media.  All wetted components are food safe, making the unit ideal for use in  beverage and process water  applications.  Additional  process  connections  and  measuring  ranges  can  also  be  found  in  the PM82-3 and PM82-4 models.

Request Digital pressure gauge
  • Industrial water applications
  • Beverage industry
  • Gaseous media
  • Hygiene applications
  • Abrasive media
  • Aggressive media
