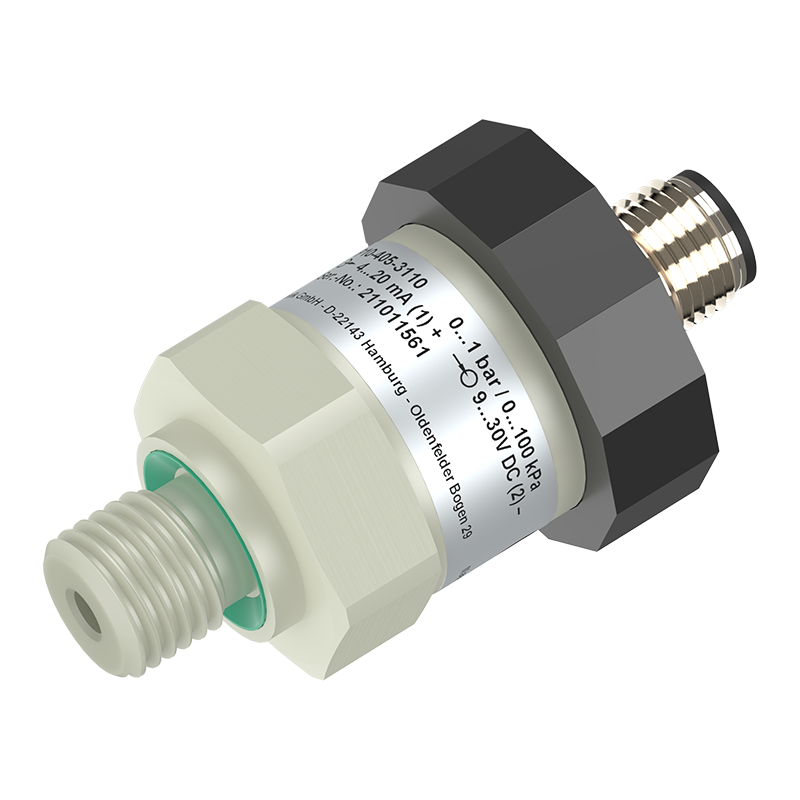

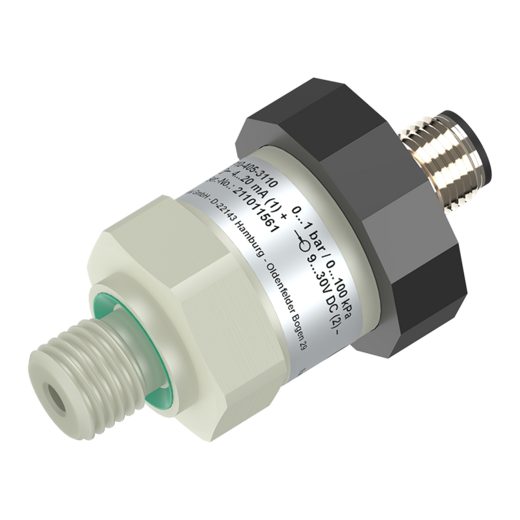

Pressure Transmitter P10 PP

Features

Dry ceramic sensor
Cost optimized for standard applications
Smallest measuring range: 0…250 mbar
Largest measuring range: 0…20 bar
Negative pressure measuring range: up to -1 bar
Compact and rugged design
Accuracy ≤ 0,5 %
Analog output: 4…20 mA, 2-wires
0…10 V, 3-wires
0...5 V, 3-wires
0,5...4,5 V, ratiometric

Description

The P10 pressure transmitter in its plastic version is a cost-effective solution for pressure measurement in aggressive media. The combination of a piezoresistive measuring principle and a ceramic diaphragm ensures reliable operation in corrosive and abrasive applications. Thanks to the highly chemical-resistant housing materials, the sensor is particularly well suited for use in the chemical and electroplating industries, where conventional metallic materials may be exposed to corrosion.Our modular design concept provides a wide variety of products. Feel free to contact us if you need a customization that is not listed in this data sheet.

Request Pressure transmitter

Applications:

Gaseous media
Liquid media
Abrasive media
Aggressive media
Vacuum applications

Measuring ranges	Smallest measuring range: 0…250 mbar
	Largest measuring range: 0…20 bar
	Negative pressure measuring range: up to -1 bar
Analog output	4…20 mA, 2-wires
	0…10 V, 3-wires
	0…5 V, 3-wires
	0,5…4,5 V, 3-wires, ratiometric
Power supply	20 mA output: 9…30 V DC
	5 V output: 9…30 V DC
	10 V output: 15…30 V DC
	0,5…4,5 V output: 5 V DC
Accuracy	≤ ± 0,5 % FS @ 25 °C
Long term stability	≤ ± 0,5 % FS / Year
Response time	50 ms - others on request
Switch-on time	< 1 s
Temperature coefficient	Zero: ≤ ± 0,03 % FS / Kelvin
	Span: ≤ ± 0,02 % FS / Kelvin
Process temperature	-25…100 °C
Surrounding temperature	-25…80 °C
Storage temperature	-40…85 °C
Short-circuit resistance	Permanent
Reverse polarity protection	Protection against reverse polarity, but no function
Electromagnetic compatibility	Interference emissions and immunity acc. to EN 61326
Wetted materials	Process connection: Stainless steel 1.4404
	Sensor: Ceramic Al₂O₃
	Sensor seal: FPM (Viton), NBR, EPDM, FFKM (Chemraz / Kalrez)
Protection type	IP 67
Weight	Approx. 150 g

Datasheet:	data_P10_en.pdf
Manual:	manual_P10.pdf
