Pressure transmitter

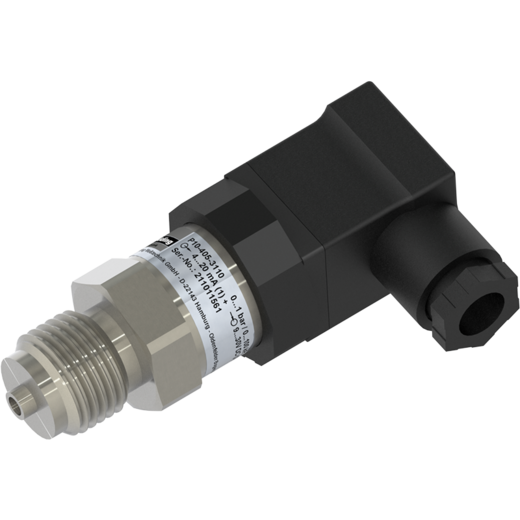

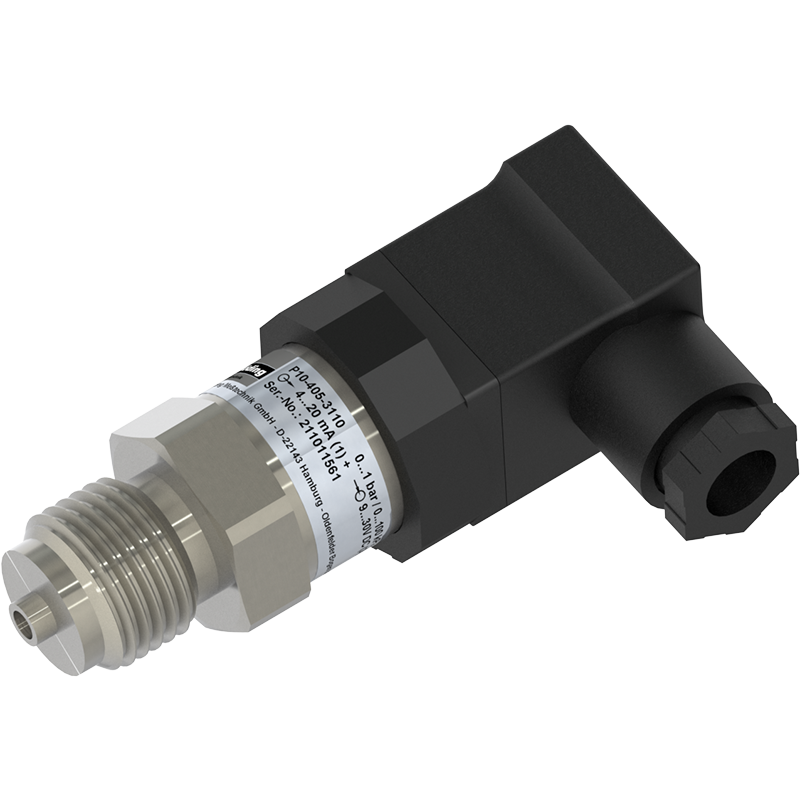

Pressure Transmitter P10


  • Dry ceramic sensor
  • Cost optimized for standard applications
  • Smallest measuring range: 0…250 mbar
  • Largest measuring range: 0…250 bar
  • Negative pressure measuring range: up to -1 bar
  • Compact and rugged design
  • Accuracy ≤ 0,5 %
  • Analog output: 4…20 mA, 2-wires
                              0…10 V, 3-wires
                              0...5 V, 3-wires
                              0,5...4,5 V, ratiometric


The  P10  pressure  sensor provides a cost-optimized alternative to capacitive sensors.  The  piezoresistive principle in combination with a ceramic  membrane  is  resistant  to  aggressive  and  abrasive  media.  Its  compact  housing  is  made  of  high-quality stainless steel  1.4404  and is  therefore suitable for almost all media. Our modular design concept provides a wide variety of products. Feel free to contact us if you need a customization that is not listed in this data sheet.

Request Pressure transmitter
  • Gaseous media
  • Liquid media
  • Abrasive media
  • Aggressive media
  • Vacuum applications
