Level transmitter

Combi Sensor P143

Features

PP housing (Polypropylene)
Smallest measuringrange: 0…250mbar/ 0…2,5mH₂O
Largest measuringrange: 0…20bar/ 0…200mH₂O
Accuracy ≤ 0,5%
Analog output: 4...20 mA, 2-wires
0...10 V, 3-wires
0...5 V, 3-wires
0,5...4,5 V, 3-wires ratiometric
Optionally integrated PT100 / PT1000 Sensor for temperature measurement
Optionally with stainless steel cap usable as level sensor

Description

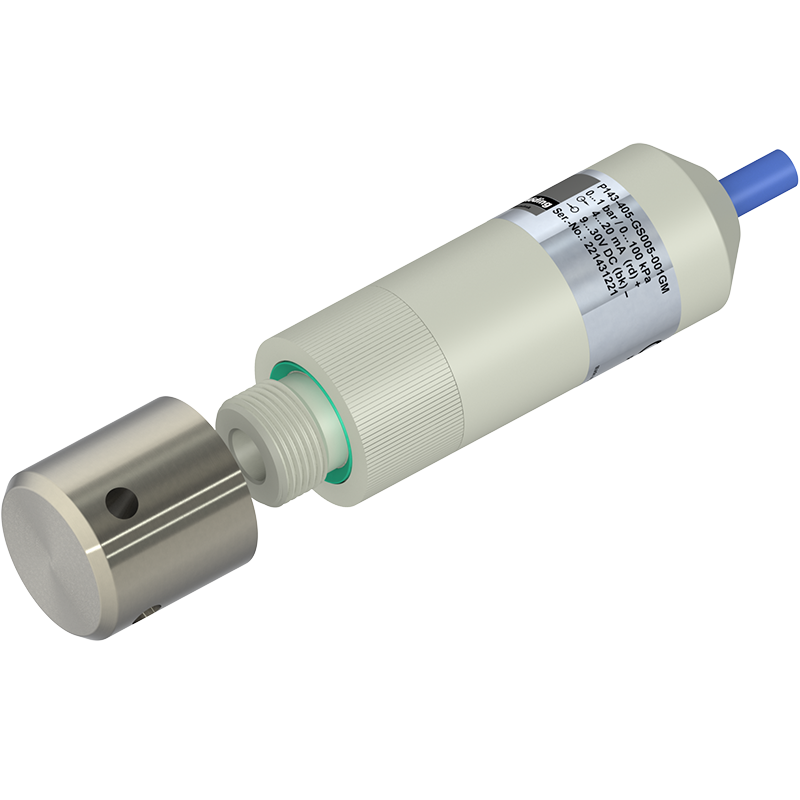

The model P143 can be used as a level sensor or as a screw-in transmitter. The screw-on stainless steel cap provides the necessary weight to prevent floating during level measurement and at the same time protects the diaphragm. Without the cap, the device can be used as a screw-in transmitter with G 1/2 in. thread, integrated seal and protection class IP68. The measuring cell operates based on the piezoresistive principle and forms, in combination with the polypropylene housing, a slim transmitter with high chemical resistance. Our modular design concept provides a wide variety of products. Feel free to contact us if you need a customization that is not listed in this datasheet.

Request Level transmitter

Applications:

Chlorine and salt water applications
Chemicals
Gaseous media
Water
Waste water
Well / Deep well
Aggressive media

Measuring ranges	Smallest measuring range: 0…250 mbar / 2,5 mH₂O
	Largest measuring range: 0…20 bar / 200 mH₂O
Analog output	4…20 mA, 2-wires
	0..10 V, 3-wires
	0...5 V, 3-wires
	0,5...4,5 V, 3-wires, ratiometric
Power supply	20 mA / 5 V output: 9…30 V DC
	0,5...4,5 V output: 5 V DC
	10 V output: 15…30 V DC
Accuracy	≤ ± 0,5 % FS @ 25 °C
Long term stability	≤ ± 0,5 % FS / Year
Response time	50 ms - others on request
Swich-on time	< 1 s
Temperature coefficient	Zero: ≤ ± 0,03 % FS / Kelvin
	Span: ≤ ± 0,02 % FS / Kelvin
Medium temperature	-25…80 °C
Surrounding temperature	-25…80 °C
Storage temperature	-40…85 °C
Short-circuit resistance	Permanent
Reverse polarity protection	Protection against reverse polarity, but no function
Electromagnetic compatibility	Interference emissions and immunity acc. to EN 61326
Wetted materials	Housing: Polypropylene (PP)
	Messzelle: Ceramic Al₂O₃
	Screw cap: Stainless steel (optional)
	Sensor seal: FPM (Viton), EPDM, FFKM (Chemraz / Kalrez)
Protection type	IP 68
Weight	Approx. 450 g with 5 m cable

Datasheet:	data_P143_en.pdf
Manual:	manual_P143.pdf
