Digital thermometer

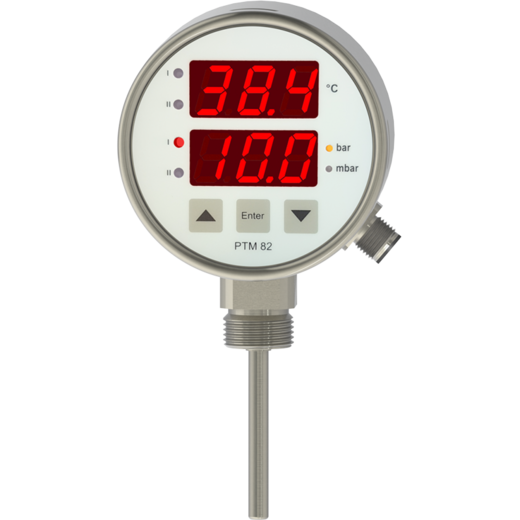

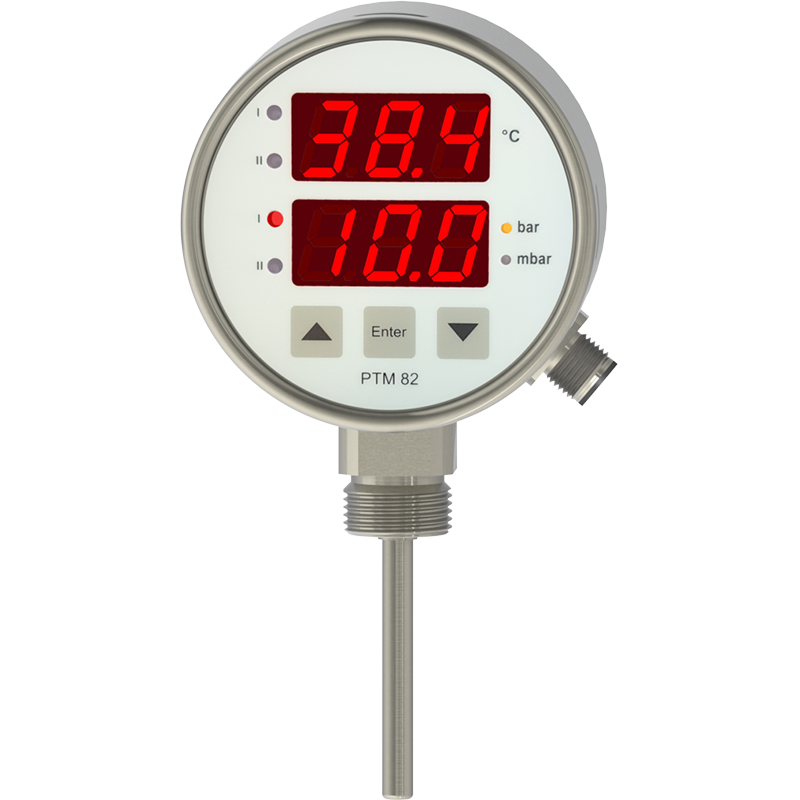

Digital Thermometer PTM82

Features

  • 3 digit LED display
  • Recording min./max. pressure
  • Dry piezoresistive ceramic sensor
  • Smallest measuring range: 0…250 mbar
  • Largest measuring range: 0…40 bar
  • Negative pressure measuring range: up to -1 bar
  • Accuracy ≤ 0,5%
  • 2 contact outputs DC PNP, max. 200mA
  • Analog output: 4…20 mA, 3-wires
                               0…10 V, 3-wires
                               0...20 mA, 3-wires

Description

The model PTM82 combines pressure and temperature measurement with a large, bright display. The digital contact gauge can still be easily read from a distance and therefore allows for a quick assessment of the process parameters. An analog output and two switch outputs widen the range of applications.  The  piezoresive  measuring  principle in combination with a ceramic membrane is resistant to aggressive and abrasive media.  The process connection is made of high-quality stainless steel  1.4404 and is therefore suitable for almost all media.  All  wetted  components  are  food safe, making the unit ideal for use in beverage and process water applications.

Request Digital thermometer

Applications:
  • Beverage industry
  • Industrial water applications
  • Gaseous media
  • Hygiene applications
  • Abrasive media
  • Aggressive media
