Level transmitter

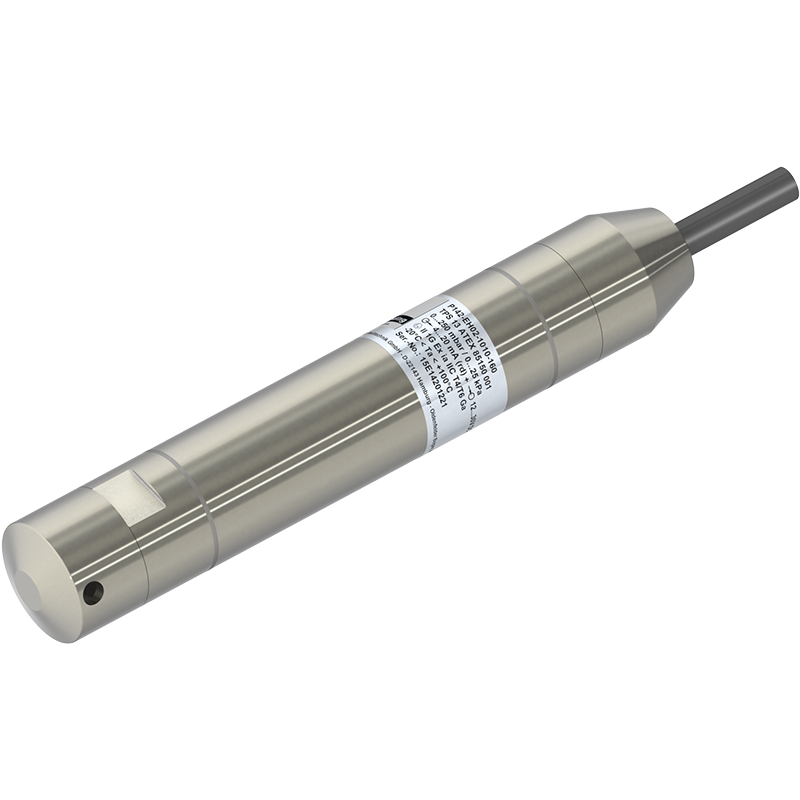

Level Transmitter P142


  • Welded metallic measuring cell
  • Smallest measuring range: 0…200 mbar/ 0…2 mH2O
  • Largest measuring range: 0…20 bar/ 0…200 mH2O
  • Accuracy ≤ 0,25%
  • Analog output: 4…20 mA
  • Optionally integrated PT100 / PT1000 Sensor for temperature measurement
  • Ex II 1G Ex ia IIC T4 / T6  Ga


The  membrane of the  P142  level  transmitter is  welded  directly  to the  housing and  does  not have to be  sealed  internally  with an  O-ring.  The medium is only in contact with highly resistant  CrNi stainless steel  1.4571 and there is no weak spot along an elastomer seal.  The protective cap can be removed if necessary and the thread underneath can be used as a process connection.  ATEX certified and with FEP suspension cable, the model  is  ideal  for  potentially  critical  areas  and  media.  The  measuring  range  can be  adjusted on  site  using the HART  interface.  Our modular  design concept provides a wide variety of products. Feel free to contact us if you need a customization that is not listed in this datasheet.

Request Level transmitter
  • Industrial and salt water applications
  • Gaseous media
  • Hygiene applications
  • Aggressive media
  • Potentially explosive areas
  • Level monitoring in fuel tanks
